Fortinet FortiGate 140D - security appliance (FG-140D)

Fortinet
No Reviews | Add Review

Share Today!

Share

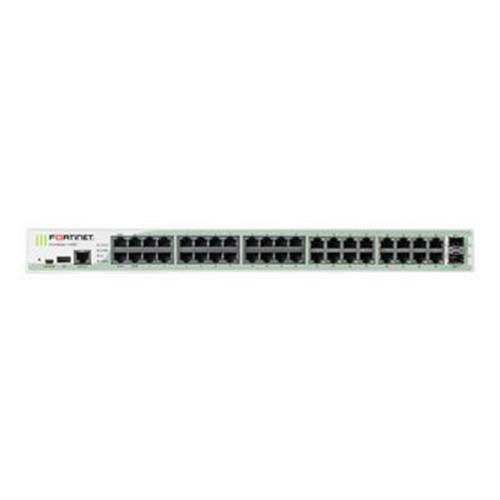

Fortinet FortiGate 140D - security appliance

Fortinet FortiGate 140D - Security appliance - 10Mb LAN, 100Mb LAN, GigE - 1U
  • PCM Part #: 9471321
  • Manufacturer Part #: FG-140D
  • Platform: Universal


The FortiGate-100D series of network security platforms deliver fully integrated Next-Generation Firewall (NGFW) and Unified Threat Management (UTM) capabilities for midsize businesses, branch offices, and small distributed enterprises. High performance throughput, security defenses, advanced threat protection, integrated wireless and switching enable you to deploy enterprise-class services across your organization.The FortiGate-140D features high port density and integrated switching, enabling enterprises to combine switching and security functions into a single platform.
General
Device Type Security appliance
Height (Rack Units) 1U
Built-in Devices LED panel
Width 17 in
Depth 12.3 in
Height 1.7 in
Weight 11.5 lbs
Processor / Memory / Storage
Hard Drive SSD - 32 GB x 1
Networking
Form Factor External
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol IPSec
Remote Management Protocol HTTP, CLI
Performance Firewall throughput (1518-byte packet size) : 2.5 Gbps ¦ Firewall throughput (512-byte packet size) : 1 Gbps ¦ Firewall throughput (64-byte packet size) : 200 Mbps ¦ Firewall throughput : 300 Kpps ¦ IPS throughput : 950 Mbps ¦ VPN throughput (IPSec) : 450 Mbps ¦ Proxy-based antivirus throughput : 300 Mbps ¦ Flow-based antivirus throughput : 650 Mbps ¦ VPN throughput (SSL) : 300 Mbps ¦ Firewall latency (64-byte UDP) : 46 µs
Capacity Concurrent sessions : 3000000 ¦ Firewall policies : 10000 ¦ Gateway to gateway IPSec VPN Tunnels : 2000 ¦ Client to gateway IPSec VPN tunnels : 5000 ¦ Virtual domains : 10 ¦ Number of FortiAP devices : 32 ¦ Number of FortiToken devices : 1000 ¦ Number of FortiClient devices : 2000 ¦ New sessions per second : 22000
Status Indicators Port transmission speed, power, status, alarm, DMZ, link/activity
Features Firewall protection, DMZ port, VPN support, antivirus analysis, High Availability, Intrusion Prevention System (IPS), firmware upgradable, anti-spam protection, anti-malware protection, IPSec passthrough
Encryption Algorithm SSL
Expansion / Connectivity
Interfaces 37 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ( WAN ) ¦ 2 x ( DMZ ) ¦ 1 x USB - Type B ¦ 1 x USB - Type A ¦ 1 x management - RJ-45
Miscellaneous
Included Accessories 4 rubber feet
Cables Included 1 x network cable ¦ 1 x console cable ¦ 1 x USB cable
Rack Mounting Kit Included
Compliant Standards UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA Network IPS
Power
Power Device Internal power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 44.8 Watt
Software / System Requirements
OS Provided FortiOS 5
Software Included Drivers & Utilities
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 90% (non-condensing)
